Bind data into Gridview_2 inside Gridview_1 by using asp.net c# coding

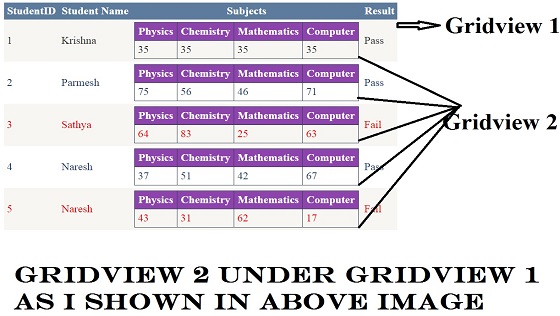

In this article let me show you how to bind data into gridview inside another gridview control by using c# coding. But one thing is that gridview is used to display data in tabular format for this project which i shown in above image i.e
Gridview 1 : its a actual gridview control drag and drop from the toolbox.
Gridview 2 : its not a actual gridview control instead of gridview 2 control here i'm using html table code as i shown in below code snippet.

Gridview 2 HTML Code Markup Language

Copy and paste this below code inside the Gridview 1 Control

<table class="tblchildgrid">
  <tr>
    <th class="tblchildgrid_th">Physics</th>
    <th class="tblchildgrid_th">Chemistry</th>
    <th class="tblchildgrid_th">Mathematics</th>
    <th class="tblchildgrid_th">Computer</th>
  </tr>
  <tr>
     <td class="tblchildgrid_td">
       <asp:Label ID="lblPhysics" runat="server" Text='<%# Eval("physics") %>'></asp:Label>
     </td>
     <td class="tblchildgrid_td">
       <asp:Label ID="lblChemistry" runat="server" Text='<%# Eval("chemistry") %>'></asp:Label>
     </td>
     <td class="tblchildgrid_td">
        <asp:Label ID="lblMaths" runat="server" Text='<%# Eval("maths") %>'></asp:Label>
     </td>
     <td class="tblchildgrid_td">
        <asp:Label ID="lblComputer" runat="server" Text='<%# Eval("computer") %>'></asp:Label>
     </td>
   </tr>
</table>

Create Database Table : StudentMarks

StudentMarks is a database table which i'm using for demonstration purpose with predefined data that i'm inserting through script which i declare in below code snippet.

create table StudentMarks(
studentID int,
studentName varchar(30),
physics int,
chemistry int,
maths int,
computer int,
result varchar(5))

insert into StudentMarks values(1,'Krishna', 35,35,35,35,'Pass')
insert into StudentMarks values(2,'Parmesh', 75,56,46,71,'Pass')
insert into StudentMarks values(3,'Sathya', 64,83,25,63,'Fail')
insert into StudentMarks values(4,'Naresh', 37,51,42,67,'Pass')
insert into StudentMarks values(4,'Naresh', 43,31,62,17,'Fail')

Gridview 1 HTML Code Markup Language

Copy and paste Gridview 2 html code inside Gridview 1 Control where you find this line <!-- Copy and Paste Gridview 2 Code Here -->

    <asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False"
            CellPadding="4" ForeColor="#333333" GridLines="None"
            onrowdatabound="GridView1_RowDataBound">
            <AlternatingRowStyle BackColor="White" ForeColor="#284775" />
        <Columns>
         <asp:TemplateField>
          <HeaderTemplate>
           StudentID
          </HeaderTemplate>
          <ItemTemplate>
           <asp:Label ID="lblStudentID" runat="server" Text='<%# Evalundefined"studentID") %>'></asp:Label>
          </ItemTemplate>
          </asp:TemplateField>
         <asp:TemplateField>
          <HeaderTemplate>
           Student Name
          </HeaderTemplate>
          <ItemTemplate>
           <asp:Label ID="lblStudentName" runat="server" Text='<%# Evalundefined"studentName") %>'></asp:Label>
          </ItemTemplate>
         </asp:TemplateField>
         <asp:TemplateField>
          <HeaderTemplate>
           Subjects
          </HeaderTemplate>
          <ItemTemplate>

          </ItemTemplate>
          </asp:TemplateField>

           <!-- Copy and Paste Gridview 2 Code Here -->

         <asp:TemplateField>
          <HeaderTemplate>
           Result
          </HeaderTemplate>
          <ItemTemplate>
           <asp:Label ID="lblResult" runat="server" Text='<%# Evalundefined"result") %>'></asp:Label>
          </ItemTemplate>
         </asp:TemplateField>
        </Columns>
            <EditRowStyle BackColor="#999999" />
            <FooterStyle BackColor="#5D7B9D" Font-Bold="True" ForeColor="White" />
            <HeaderStyle BackColor="#5D7B9D" Font-Bold="True" ForeColor="White" />
            <PagerStyle BackColor="#284775" ForeColor="White" HorizontalAlign="Center" />
            <RowStyle BackColor="#F7F6F3" ForeColor="#333333" />
            <SelectedRowStyle BackColor="#E2DED6" Font-Bold="True" ForeColor="#333333" />
            <SortedAscendingCellStyle BackColor="#E9E7E2" />
            <SortedAscendingHeaderStyle BackColor="#506C8C" />
            <SortedDescendingCellStyle BackColor="#FFFDF8" />
            <SortedDescendingHeaderStyle BackColor="#6F8DAE" />
        </asp:GridView>

C# Coding

Add Namespace to Default.aspx.cs i.e
using System.Data;
using System.Data.SqlClient;

C# Coding : BindGridview


BindGridview is a private method which is used to bind StudentMarks data into gridview control.

 protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            BindGridview();
        }
    }
  private void BindGridview()
    {
        SqlDataAdapter da = new SqlDataAdapter("Select * from StudentMarks", con);
        DataSet ds = new DataSet();
        da.Fill(ds);
        GridView1.DataSource = ds;
        GridView1.DataBind();
    }

C# Coding : Gridview_RowDataBound


how to use a RowDataBound event in a GridView to highlight the rows text color in ASP.NET. This example is helpful in situations where you need to highlight the GridView rows text based on a specific condition, i.e if student result = fail change text color red.

protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
    {
        if (e.Row.RowType == DataControlRowType.DataRow)
        {
            Label lblSID = (Label)e.Row.FindControl("lblStudentID");
            Label lblSName = (Label)e.Row.FindControl("lblStudentName");
            Label lblPhyscs = (Label)e.Row.FindControl("lblPhysics");
            Label lblChemistry = (Label)e.Row.FindControl("lblChemistry");
            Label lblMaths = (Label)e.Row.FindControl("lblMaths");
            Label lblComputer = (Label)e.Row.FindControl("lblComputer");
            Label lblResult = (Label)e.Row.FindControl("lblResult");
            if (lblResult.Text == "Fail")
            {
                lblSID.Style.Add("color", "#f00");
                lblSName.Style.Add("color", "#f00");
                lblPhyscs.Style.Add("color", "#f00");
                lblChemistry.Style.Add("color", "#f00");
                lblMaths.Style.Add("color", "#f00");
                lblComputer.Style.Add("color", "#f00");
                lblResult.Style.Add("color", "#f00");
            }
        }
    }
